Overview

A project item is one distinct object inside a project. It has its own overall dimensions, material, material thickness, cutting method, finger sizing, and parts. For example, a cabinet project might include one project item for the cabinet body and separate project items for each drawer. A chair project might include one project item for the chair and another for a matching foot stool.

Use project items when related objects belong together in the same project but need their own settings. This is helpful when items use different materials, different thicknesses, or different cutting workflows. For now, project items are independent from one another: they do not intersect, cut into, join with, or automatically affect other project items. If two project items appear near each other in the same project, they are organized together, but they are not physically connected by GCrafter.

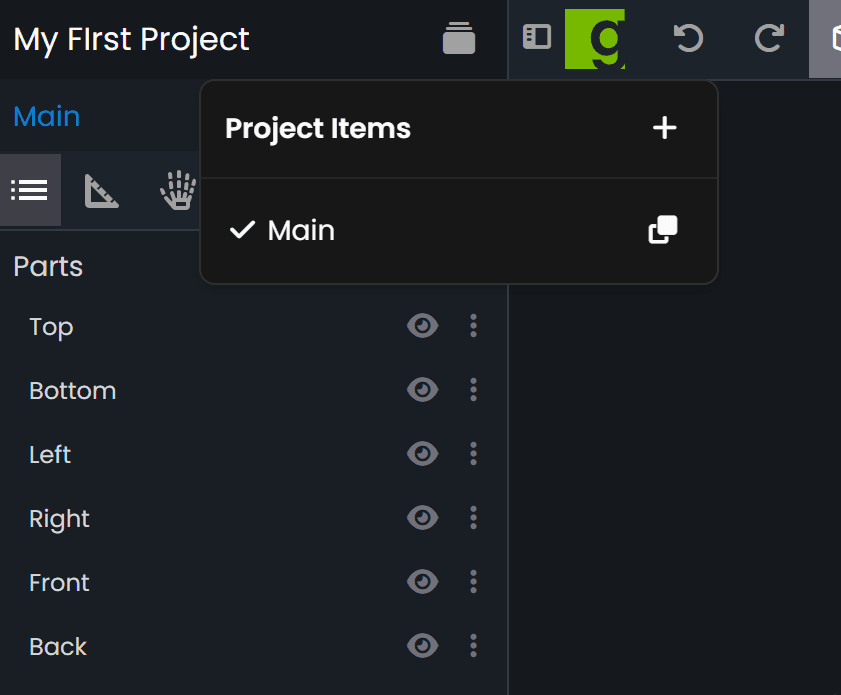

Project Menu

Use the project menu to add, remove, or duplicate project items.

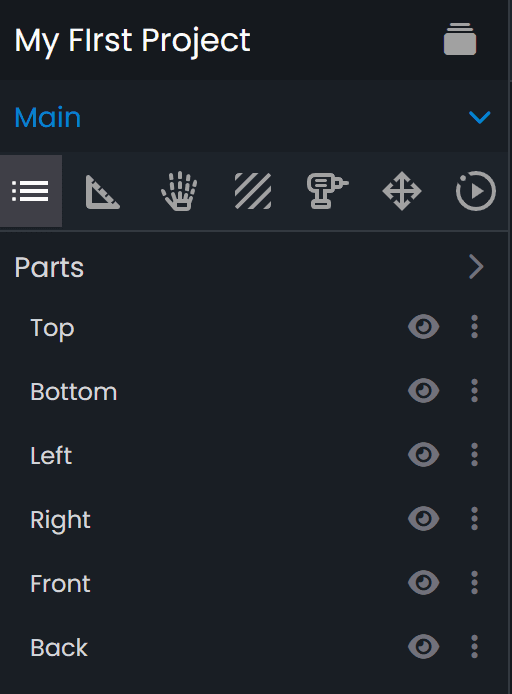

Parts List

In the parts list menu you can

Select a part
Change the visibility of a part
Drag and drop (by pressing on the name of a part) to reorganize
Open (with the more button) other part options.
Open (with the right pointing arrow) options to create new parts. And a few other options

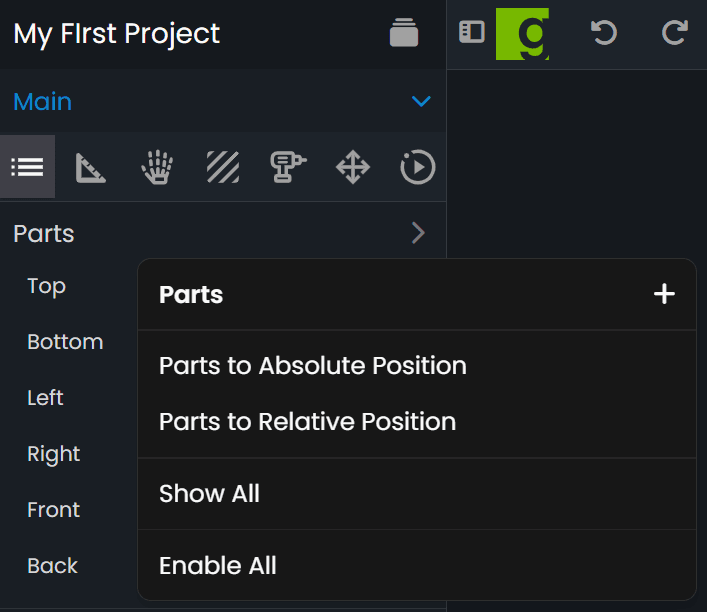

Project Item Parts Menu

With the parts menu you can

Add new parts
Change all parts to absolute position
Change all parts to relative position
Show all parts (sets all parts to visible)
Enable all parts (reenable any part that is disabled)

When you have a part selected you can

Disable all parts but the selected one
Hide all parts but the selected one

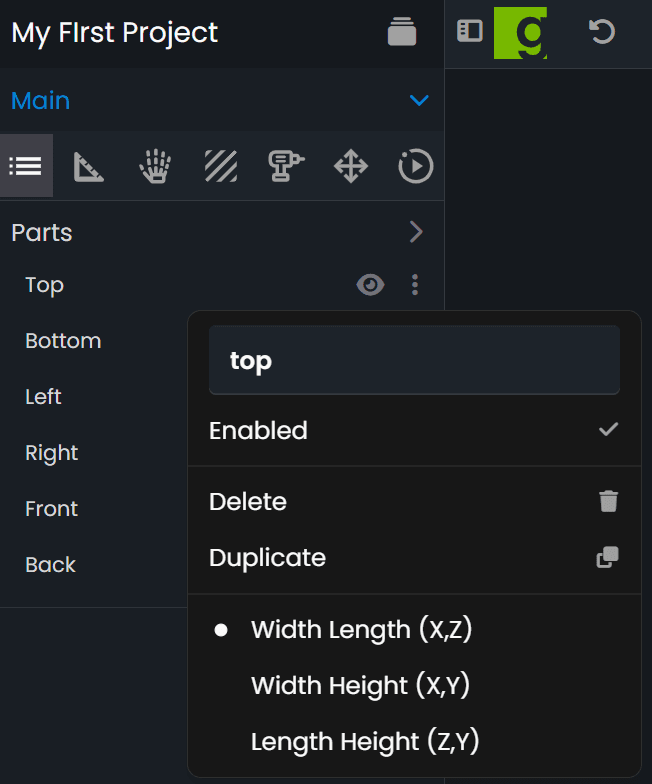

Part Menu

With the part menu you can

Change the name of part
Enable / Disable a part. Disabled parts are not shown nor do they intersect other parts
Delete a part
Duplicate a part
Change the part type. For example change a top into a front/back, etc.
